Regular price
$5,999.99
Sale price
$4,999.99
Unit price
per
Shipping calculated at checkout.

Lithium Technology

Flat discharge curve holds above 12V for up to 95% of its capacity usage providing huge boosts in run-time compared to only 50% in Lead Acid.

>2500 Charge Cycles

2500 - 7000 cycles and a 10 year lifetime cycle use.

Environmental Friendly

ISO 9001, UL, and ROHS Certifications for every battery.

Built-in Safety System

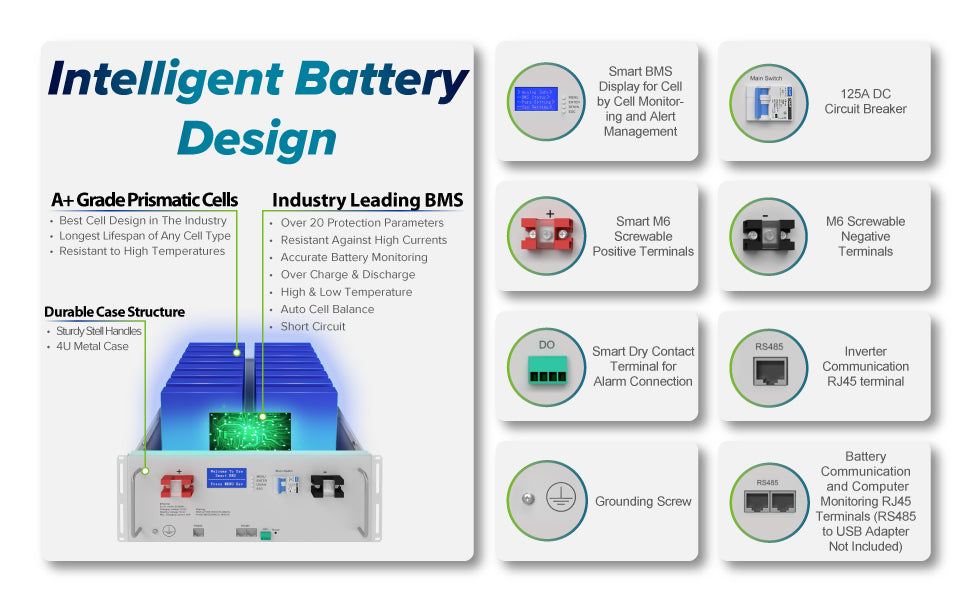

Unique built-in Battery Management System (BMS) protects our LiFePO4 batteries from overcharge, deep discharge, overloading, overheating, short circuit, and excessive low self-discharge rate. This built-in system can ensure up to 1-year of maintenance-free storage.

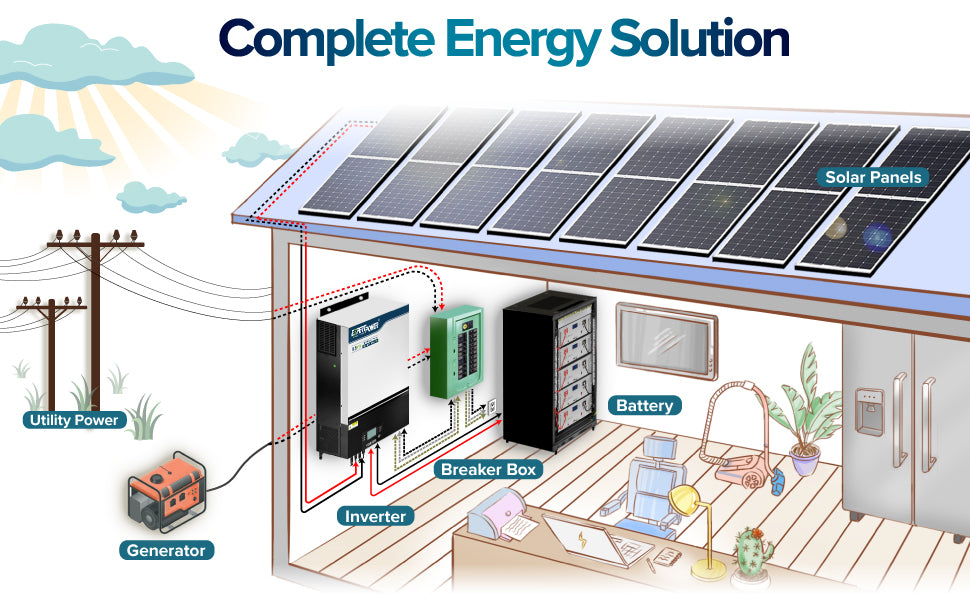

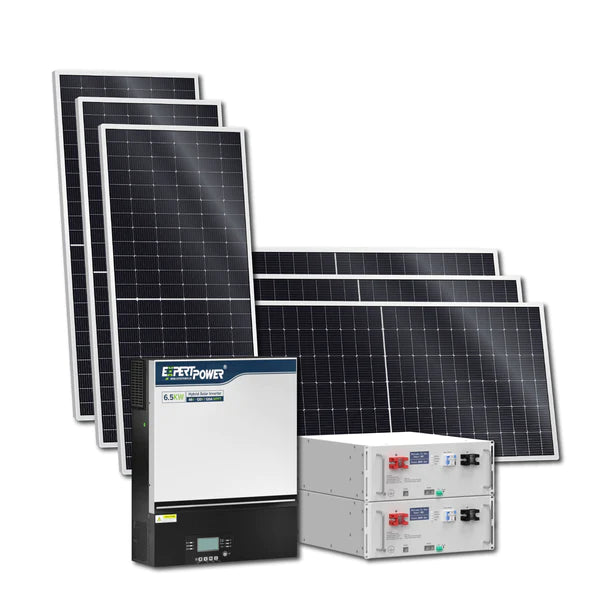

Description: This Off-Grid Solar System Kit includes two 48V 100Ah LiFePO4 batteries, six 540W Monocrystalline Solar Panels, and one 6500W Hybrid Solar Inverter equipped with a 120A MPPT Solar Charge Controller. It is perfect for installation on an RV, Off-Grid, Cabinet, or House and helps buying and setting up a complete off-grid solar kit simple, quick and easy. The Off-Grid Solar System Kit is ideal for a power system that requires high versatility. The two 100Ah batteries provide 10240Wh worth of backup power with their efficiency maximized by the 6500W pure sine wave inverter, smart and powerful enough to take full advantage of the batteries with six 540W solar panels, keeping you up and running indefinitely.



48V 100Ah LiFePO4 Battery specification:

Dimensions: 18 x18.9 x 7 inches (L x W x H)
Weight: 97 lbs
Battery composition: LiFePO4

Details:

Nominal Voltage: 51.2V
Charged Voltage: 57±0.2V
Rated Capacity: 100Ah (25°C , 0.2°C)
Terminal type: M6
Storage Duration: 12 Months at 77˚F

UPC: 840140939149
SKU: LBXLFP48_100

Life Cycles:
3000 with 100% DOD with 100% DOD
4000 with 80% DOD with 80% DOD
8000 with 50% DOD with 50% DOD

Operating temperature:
Discharge: -22 - 131°F
Charge: 23 - 131°F

Max. Discharge Current
Continue Discharge: 100A
Permanent Discharge: 110A 10Sec.

Max. Charge Current
Continue Charge: 50A

Certification: UL, CE, DOT, & ISO
Warranty: 1 Year

540W Solar Panel specification:

Dimensions: 89.68 x 44.6 x 1.37 inches (L x W x H)
Weight: 68.3 lbs
Cells: Monocrystalline solar cells
Connections: PV

Internal specs:

Rated voltage [Vmpp]: 41.64V
Rated current [Impp]: 12.97A
Open circuit voltage [Vcc]: 49.61V
Short circuit current [Isc]: 13.85A
Max. series fuse rating: 25A
Power temp coefficient of pmax: –0.35% / °C
Max. system voltage: 1500VDC

Certification: UL
Warranty: 1 Year

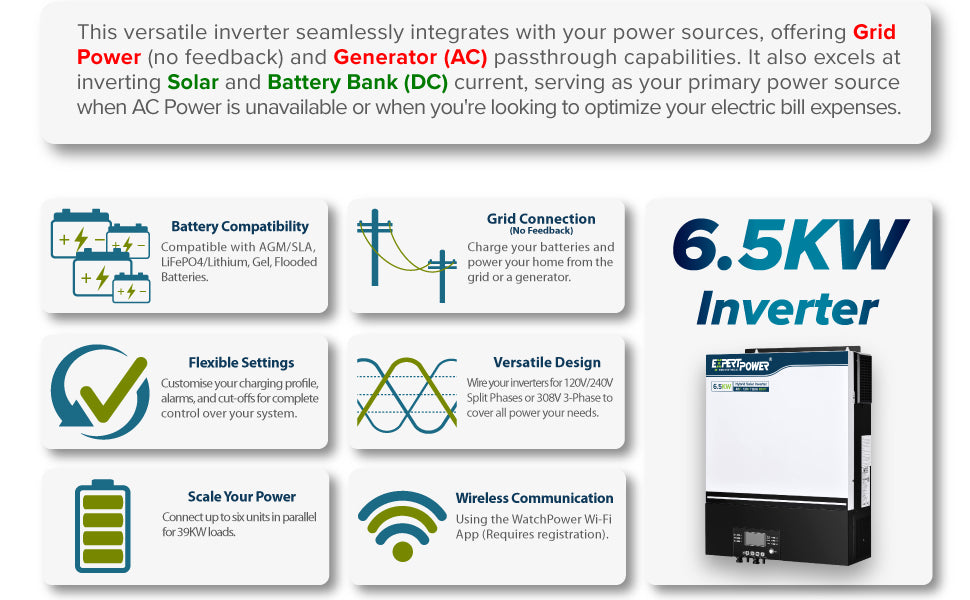

6.5KW Hybrid Solar Inverter specification:

Dimensions: 17.03 x 5.8 x 21.8 inches (L x W x H)
Weight: 40.56 lbs
Noise: Max. 60dB
Battery compatibility: SLA, Flooded, Gel, AGM, LiFePO4

Internal specs:

Rated power: 6500W
AC input voltage: 120V
DC input voltage: 48V
Output voltage: 120V
Efficiency: 90%-93%
Waveform: Pure Sine Wave
Max. charge current: 120A
No load power consumption: <70W
Solar charger type: MPPT
Humidity: 5%-95%

Automatic shutdown:
Low DC input voltage: 44VDC
High DC input voltage: 66VDC

Recovery:
High DC input voltage: 64VDC

Overload protection:
Load ≥ 205%: Shutdown after 100ms.
Load ≥ 150%: Shutdown after 5s.
110% < Load < 150%: Shutdown after 10s.
Operational: 14°F — 104°F
Storage: 5°F — 140˚F

Certification: UL1741 Compliance
Warranty: 2 Years
