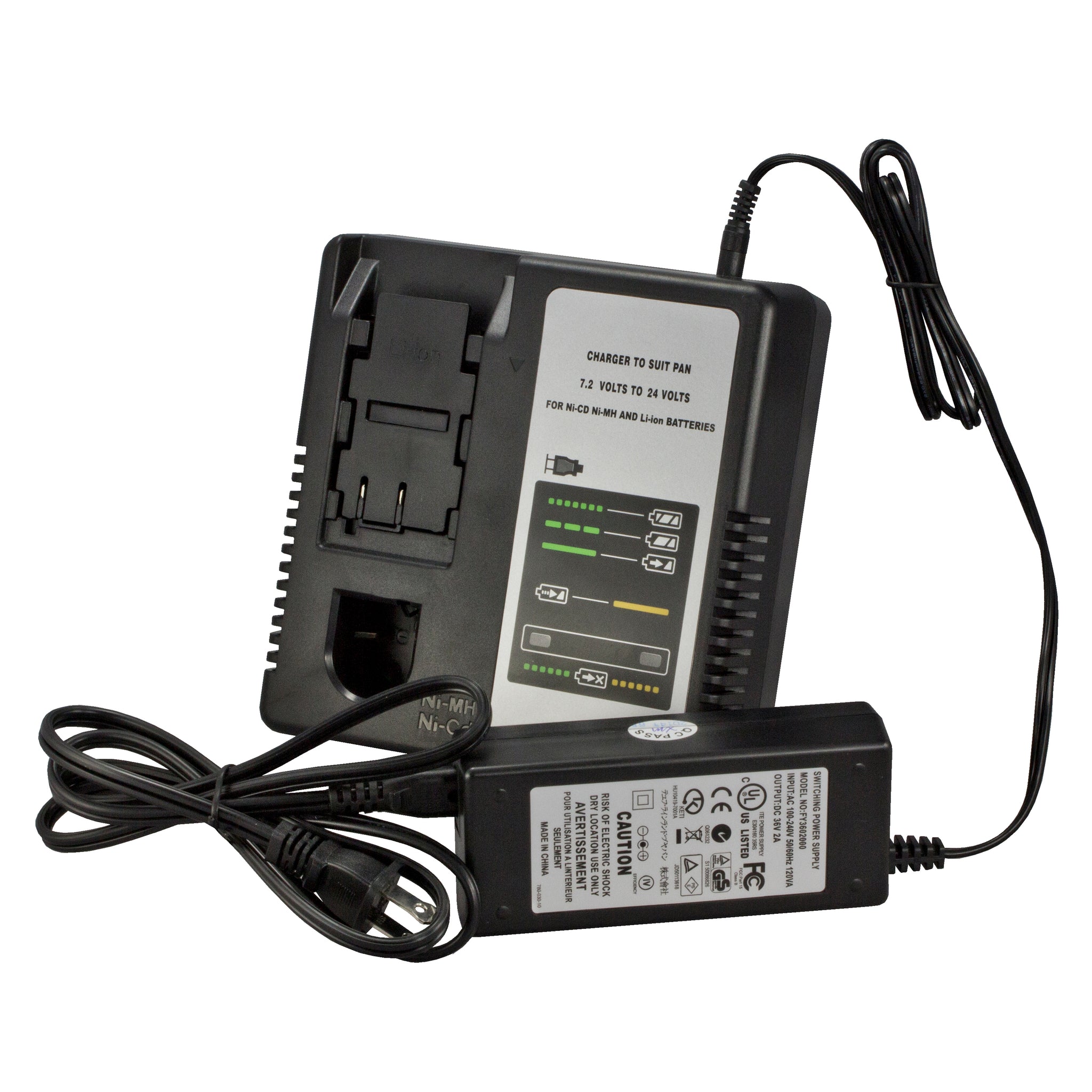

Charges Panasonic 7.2V to 24V Batteries including 7.2V, 9.6V, 12V, 14.4V, 15.6V, 18V 24V below:
Panasonic Pod style Ni-Cd, Ni-Mh batteries
e.g. EY9001, EY9005B, EY9006B, EY9101, EY9106, EY9108, EY9117, EY9200, EY9200B, EY9201, EY9201B, EY9210, EY9210B, EY9230B, EY9231, EY9231B, EY9240, EY9242, EY9244, EY9251, EY9251B etc.
Panasonic Slide style Li-Ion batteries
e.g. EY9L40, EY9L41, EYFB30, EY9L60, EY9L80 etc.
*** This charger will NOT charge EY9L42, EY9L44 or EY9L50 batteries
Battery Charger Output: 7.2 Volt to 24 Volt DC 1.5A
Battery Type: Ni-Cd, Ni-Mh, and Li-Ion batteries
Equivalent to / Replace like OEM P/N: EY0L80, EY0110B
*** This universal charger has more steady charging rate (1.5A output) than OEM rapid chargers EY0L80 (3.75A output), which gives more protection to the batteries. Please see the charging time table below for reference.
Automatic three stage mode: Pre-charge > Constant charge > Trickle charge
|
CHARGE TIME: |
Ni-Cd |
Ni-Mh |
Li-Ion |
|||||
|
Capacity (AH) |
1.3AH |
1.5AH |
2.0AH |
2.1AH |
2.5AH |
3.0AH |
3.3AH |
3.0AH |
|
Time in Mins |
52 |
60 |
80 |
84 |
100 |
120 |
132 |
120 |
Light Indicators:
PRECHARGE (Yellow light remains steady)
PACK CHARGING (green light remains steady until the battery has reached 80% of charging cpapcity, then it will blink at once per second)
FULLY CHARGED (green light blinks at 3 times per second)
FAULTY BATTERY or SHORT CIRCUIT (green light and yellow light blink at 3 times per second)
Charging Protection:
Built-in circuit protection to prevent overheating, short circuits, extended time charging and detection of damaged batteries.
The separate universal AC adaptor/power supply (UL, FCC, CE, GS approved) can be used with world wide AC voltage of 100V~240V, 50~60Hz. It has an output of 36V DC 2Amp and is plugged into the battery charger unit.
Condition:
New
Packing Contents: Brand New Charger 1 pc (Non-OEM) (AC Adaptor with American Type Flat Pin Plug)
