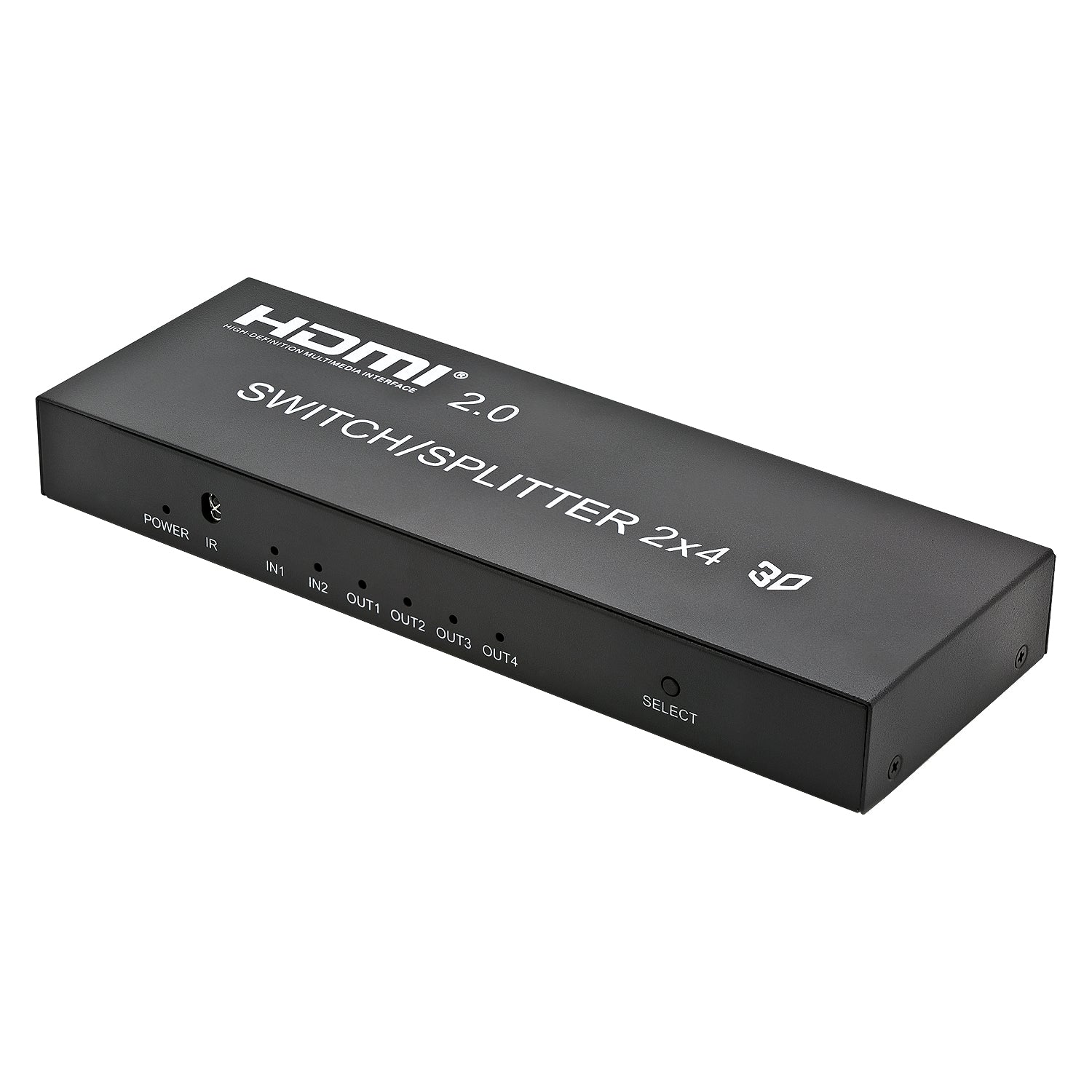

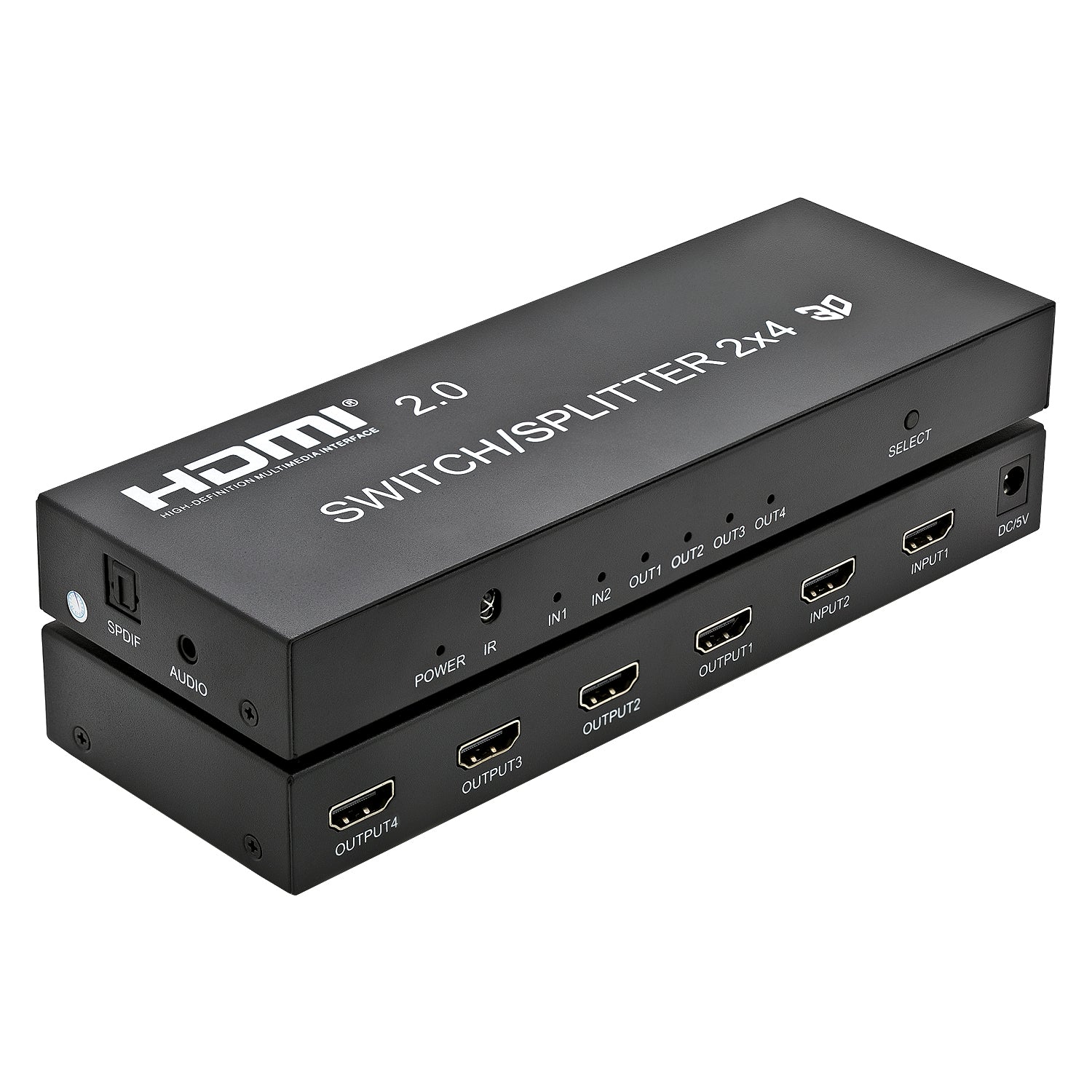

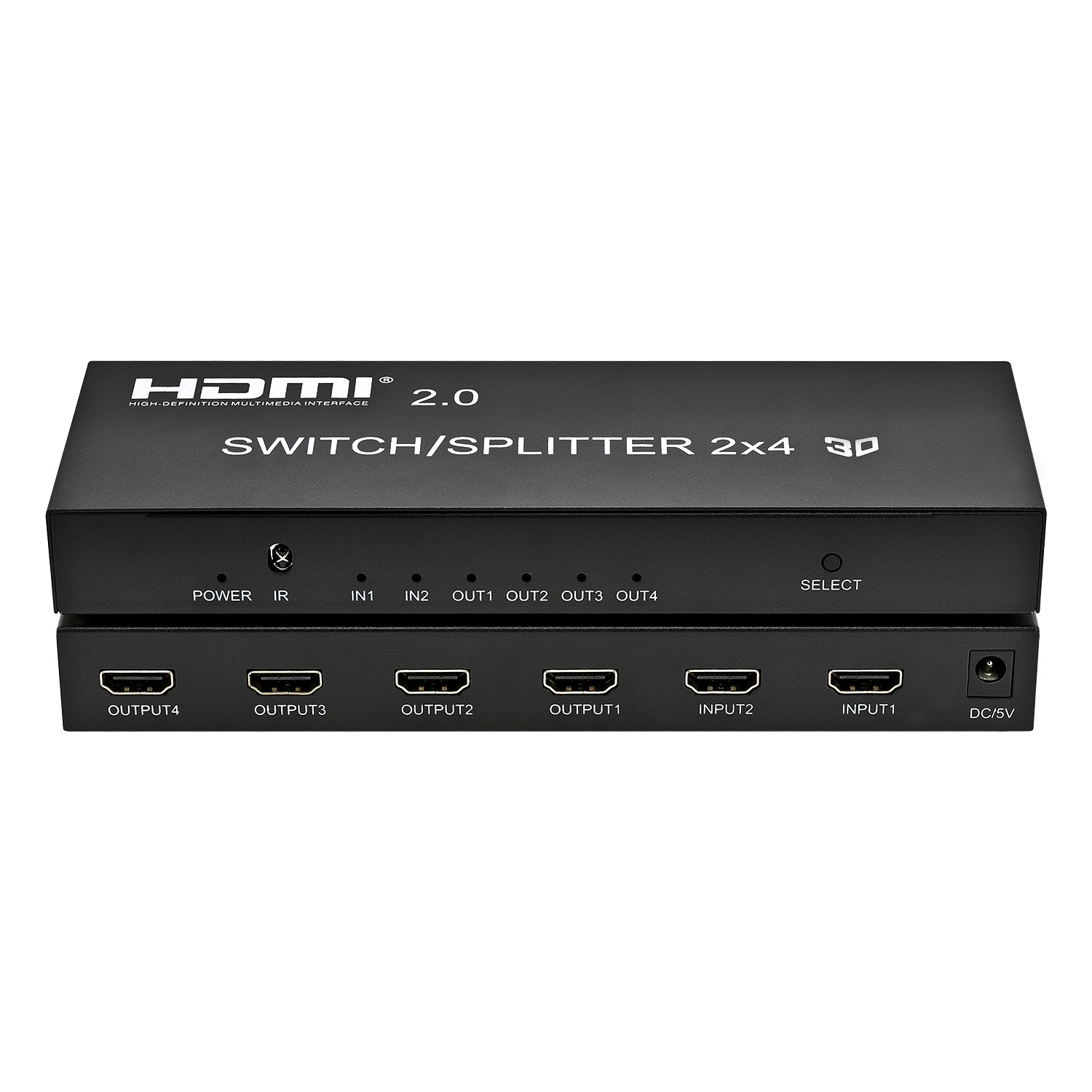

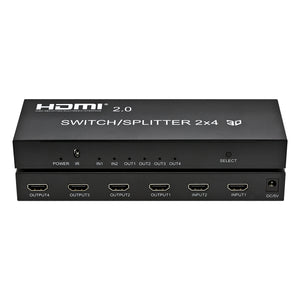

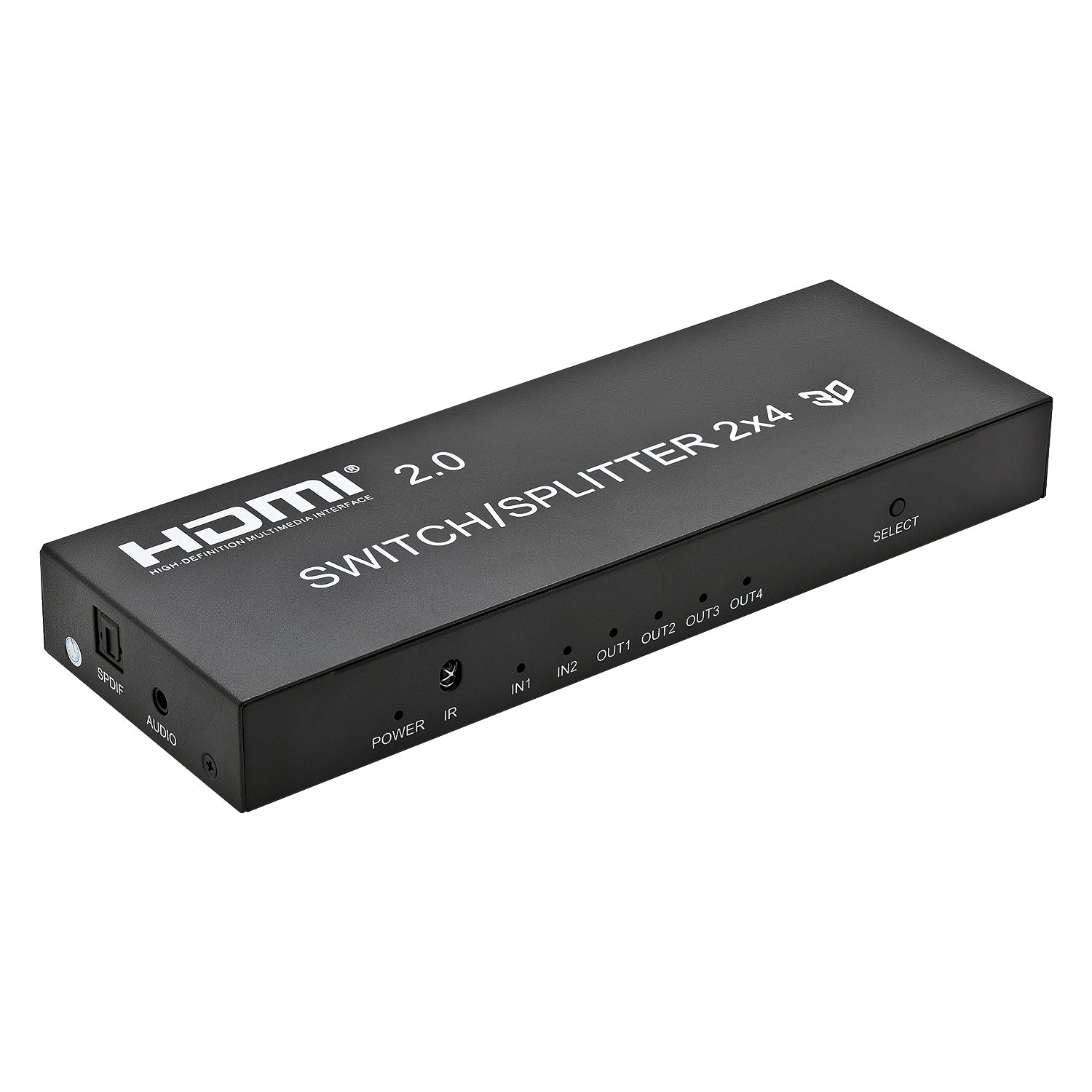

Full HD 2X4 HDMI 2.0 Splitter Switch Repeater 2 In 4 Out 4K/60Hz 3840*2160 3D 1080p
The 2x 4 HDMI 2.0 switch/splitter can connect 2 HD signal sources to 4HD display terminals. it can easily split the 2 HD signals generated by the 2 HD signal sources to 4 HD displayers or projectors. In addition, when connecting it to an HDMI output cable, it can amplify the HDMI signal. The 2 signal sources can be switched freely. The HDMI splitter can support all HD multichannel audio formats including 720P, 1080i, 1080P, 2160P@30HZ， 2160P@60HZ. It also supports the 3.5mm audio output and SPDIF audio output.
Specification
HDMI Version-HDMI 2.0A
HDMI resolution -up to 3840*2160/60Hz
Support Video color format-8/10/12 bit deep color
Support Audio format-DTS-HD/DOLBY-True HD/DTS/DOLBY-AC3/DSD
Max Bandwith-600MHz
Max Baud Rate-6Gbps
Input cable distance-(1080P resolution)<20m, (4K resolution)<10m AWG26 HDMI standard cable
Output cable distance-(1080P resolution)<20m, (4K resolution)<10m AWG26 HDMI standard cable
Max working current -500mA
Power adapter format-Input: AC(50Hz, 60Hz) 100V-240V: Output: DC5V/1A
Operating Temperature Range-(-15°C to +55°C）
Dimension(L x W x H)-200x70x25(mm)
Weight-280g

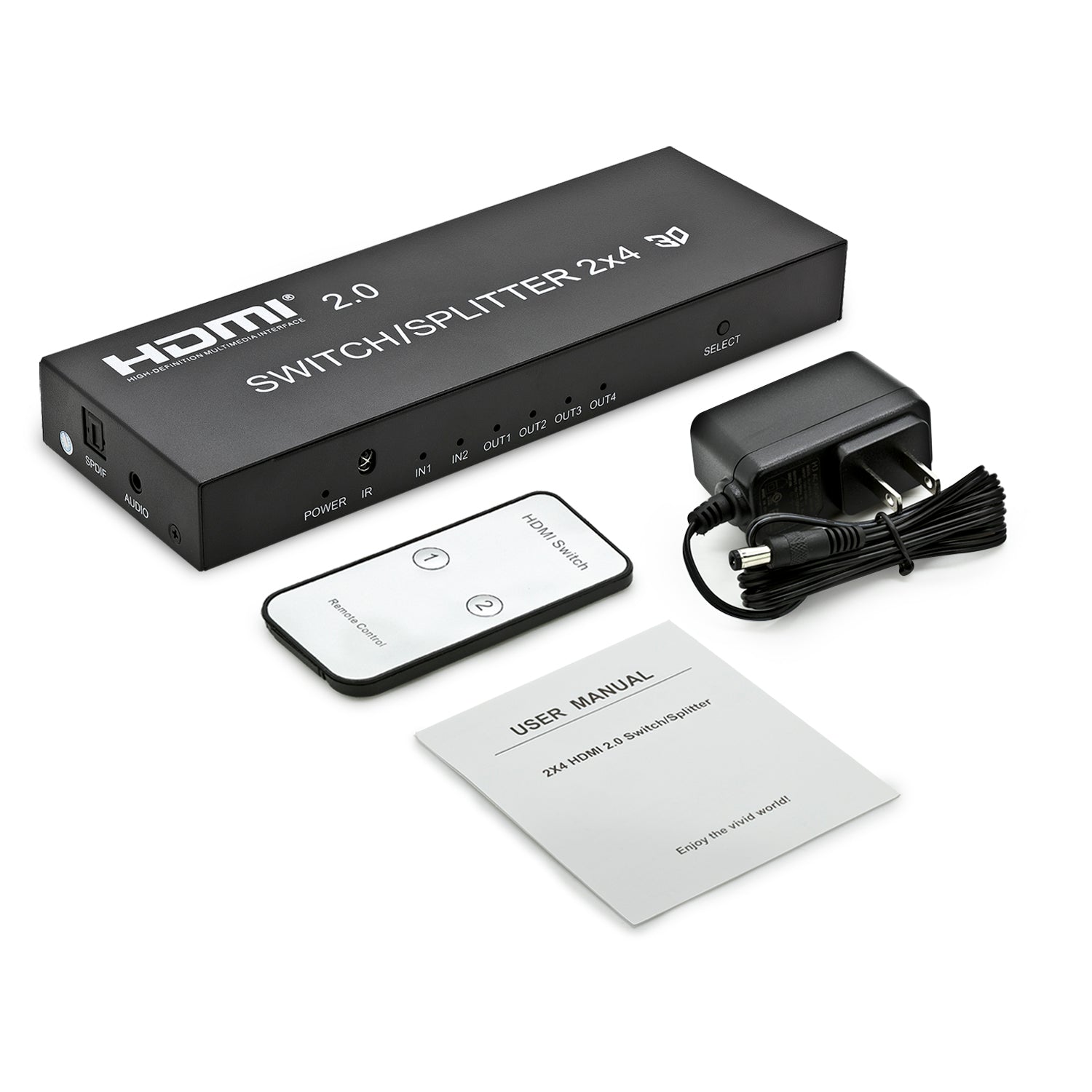

Package Includes:
- HDMI Switch/Splitter
- IR remote control
- 5V/1A power adapter
- User Manual
