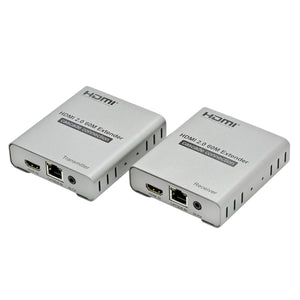

This kind of HDMI Extender uses one piece of UTP cable with cross stand inside to extend the HDTV display up to 60 meters for HDMI 2.0 4K@60HZ. It not only breaks the limitation of the HDMI cable transmission length but also CAT-5e/6 has more flexibility and convenience in cable construction. It is equipped with HDMI  (high definition multimedia interface) connectors and is capable of supporting DVI (digital visual interface) equipment when used with an HDMI  to DVI Adapter, providing greater flexibility and options when integrating several home theater components.

Specification

Length of CAT-5E/CAT-6 cable between Rx and TX up to 60 meters
HDMI input -4K/1080p/720p/576p/576i/480p/480i
Support audio format-DTS/Dolby/LPCM
HDMI output -4K/1080p/720p/576p/576i/480p/480i
Max bandwidth -600MHz
Max baud rate - 6Gbpsx3
Input video signal-0.51.5Volts p-p
Output DDC signal-5Volts p-p (TTL)
Input HDMI cable distance -<10m AWG26 HDMI standard cable
Output HDMI cable distance -<10m AWG26 HDMI standard cable
TX Max working current -350mA
RX Max working current -200mA
Power adapter format-Input: AC (50HZ, 60HZ) 100V-240V/ Output: DC5V/1A
Operating Temperature Range -(-15 to +55)
Operating Humidity range -5% to 90%RH (No Condensation)
Dimension (L x W x H)-94x84x24(mm)
TX Weight -223g
RX Weight -223g

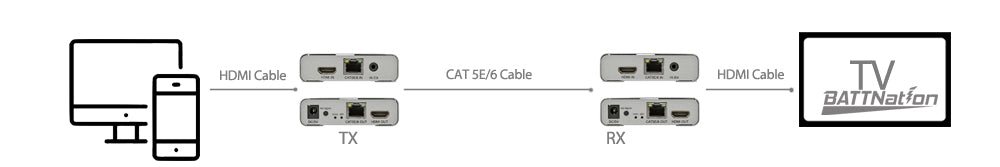

Operating and Connecting

  1. Connect source device with a transmitter by one HDMI cable, the cable max length is 10 meters
  2. connect display device with a receiver by one HDMI cable, the cable max length is 10 meters.
  3. Connect TX with RX by one cat 5e or cat 6(recommended), the cable max length is 60 meters
  4. one pair of IR RX and IR TX cable, connected to the 3.5mm IR RX and IR TX ports of the transmitter and receiver respectively
  5. Connect the power supply to the TX and RX.
  6. Led indicator: When the HDMI indicator is on, it indicates that the HDMI signal input and the RJ45 indicator is on, indicating that the network port signal input.

The HDMI 2.0 60M extender uses single cat-5E or cat6(recommended) cable instead of HDMI cable, you can extend the HDMI 2.0 4K@60Hz signal to 60 meters or 4k@30Hz and 1080P signal to 120 meters. The purpose of the extender is to achieve long-distance signal transmission with low -cost wires.

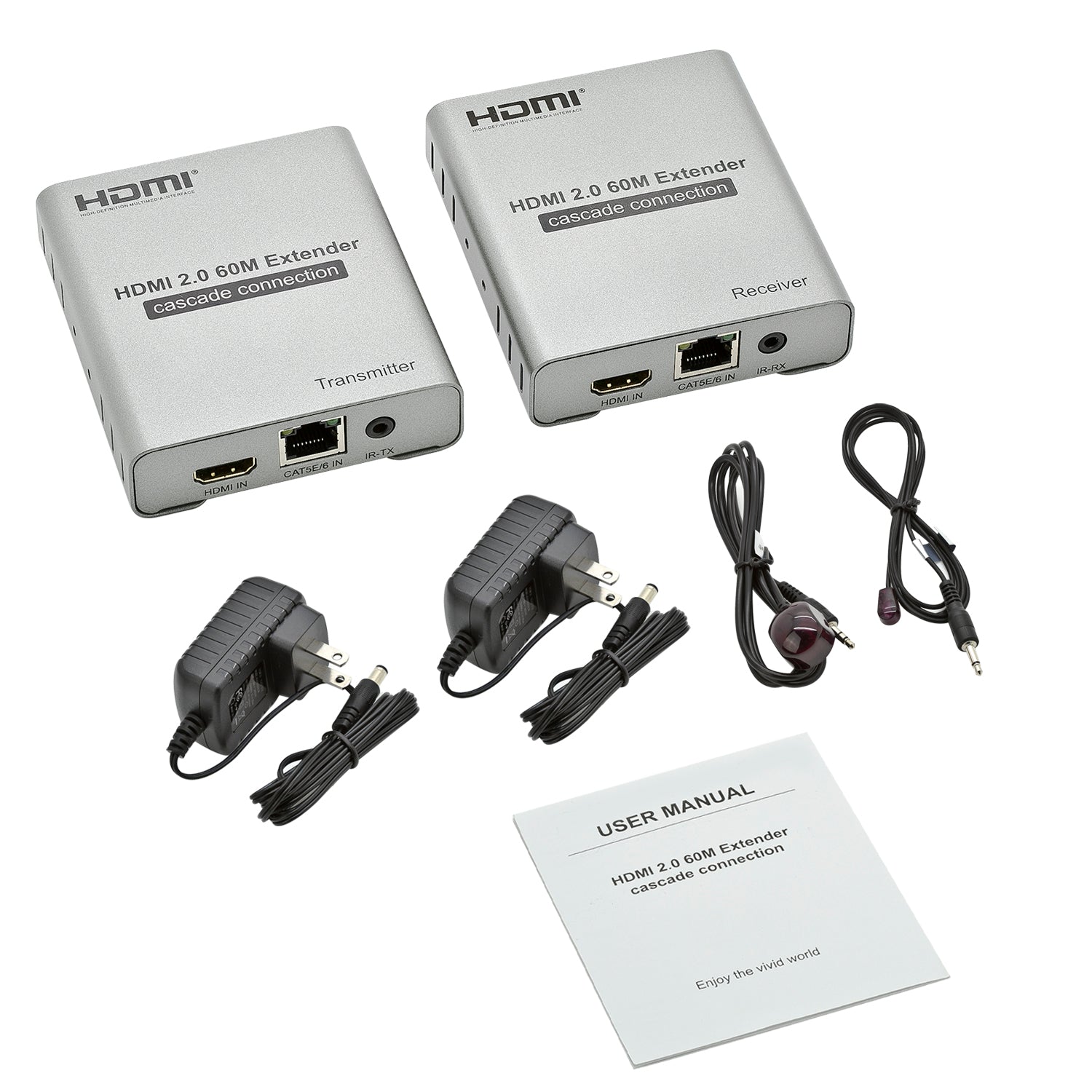

Package includes:

  1. ​​​​TX Extender: 1 pc
  2. RX Extender: 1 pc
  3. IR Cable  1 Pair
  4. 5V/1ADC Power adapter x 2pcs
  5. 3. User Manual
